Issue 200 of ESCC QUALIFIED PART LIST (QPL)
- Posted by Emilio Cano García
- On October 7, 2019
- 0
The changes in issue 200 of ESCC QUALIFIED PART LIST (QPL) are included in the DCR 1295 and detailed herein below:
New certificate:
- Certificate 362 from Leach Sarralbe (France). This certificate lists electromagnetic latching relays based on type GP250, included in the detail specification ESCC 3602/010. GP250 relays was previously qualified with the certificate 93, from February 1982 to February 2017, with the same design but in Leach Niort (France) product location.
Removed certificate:
- Certificate 273F from Cobham (France). This certificate lists varactor diodes based on types DH76XXX, included in the detail specification ESCC 5512/023. All variants have been included into the new edition of the certificate 225.
Extension with Re-scope:

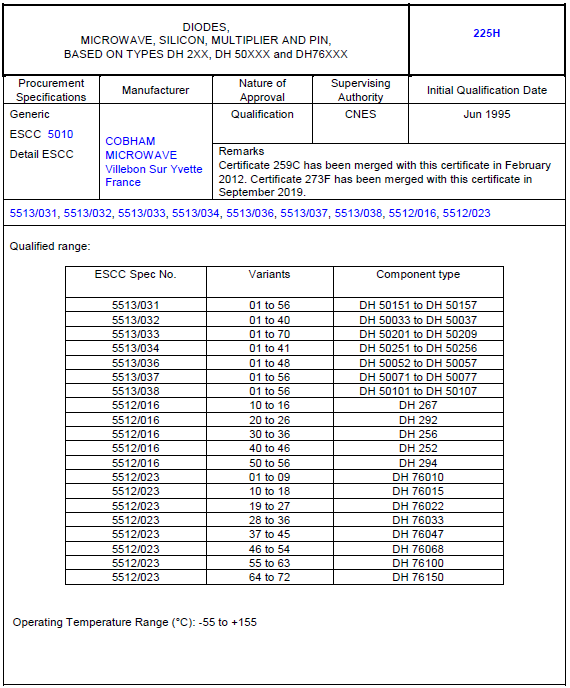

- Certificate 225H from Cobham (France). This certificate lists power varactor diodes based on types DH2XX, DH50XXX and DH76XXX, included in the detail specifications ESCC 5513/031, ESCC 5513/032, ESCC 5513/033, ESCC 5513/034, ESCC 5513/036, ESCC 5513/037, ESCC 5513/038, ESCC 5512/016, ESCC 5512/023, ESCC 5513/032. The scope of the certificate has changed, all variants from discontinued certificate 273F, have been included into the certificate 225H.
Editorial:
- Certificate 71Rrev1 from C&K (France). This certificate lists Sub-D connectors, contacts and accessories included in the detail specifications, ESCC 3401/001, ESCC 3401/004, ESCC 3401/022, ESCC 3401/040, ESCC 3401/072, ESCC 3401/080. The scope of the certificate has changed:
- Variants 60 to 64 of detail specification ESCC 3401/022 have been removed.
- Variants 20 to 24, 56 to 60, 74, 75, 81 and 82 of detail specification ESCC 3401/072 have been included.
- Certificate 140P from C&K (France). This certificate list Micro-D connectors, contacts and accessories included in the detail specifications, ESCC 3401/029, ESCC 3401/041, ESCC 3401/032, ESCC 3401/087. The scope of the certificate has changed.
- Variants 18 to 21 of detail specification ESCC 3401/032 have been included.
Extension:
The certificates list herein below, have extended their validity date. The scope of these certificates has not changed.
- Certificate 25R from TE Connectivity Deutsch Evreux (France).
- Certificate 98J from REL-STPI Saint Jean de la Ruelle (France).
- Certificate 132Q from Axon Cable Montmirail (France).

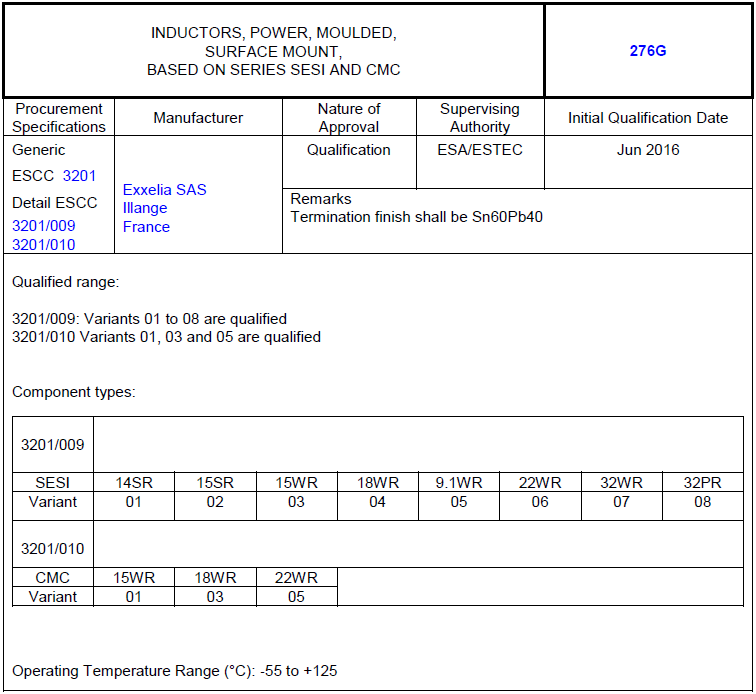

- Certificate 276G from Exxelia SAS Illange (France).
- Certificate 268H from Axon Cable Montmirail (France).

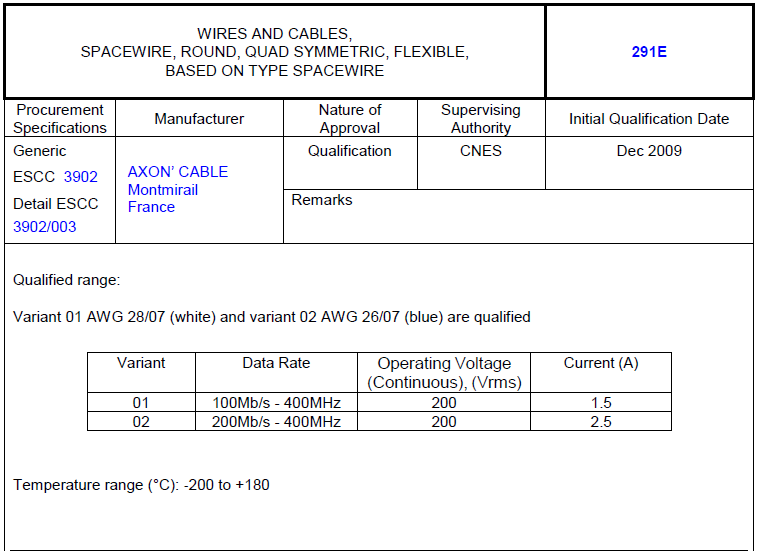

- Certificate 291E from Axon Cable Montmirail (France).

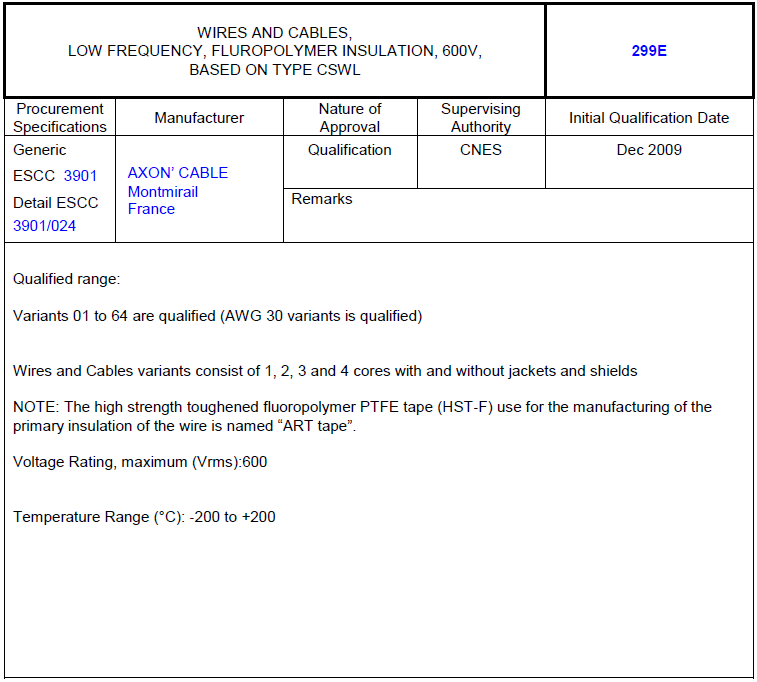

- Certificate 299E from Axon Cable Montmirail (France).
- Certificate 300E from Axon Cable Montmirail (France).

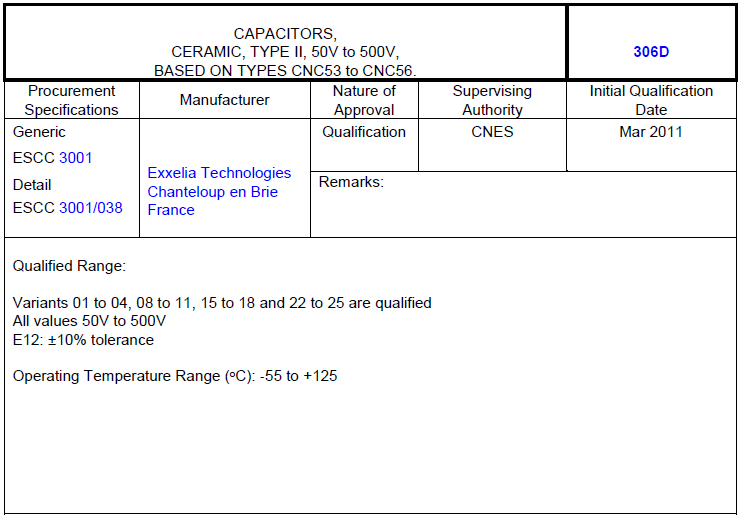

- Certificate 306D from Exxelia Technologies Chanteloup en Brie (France).

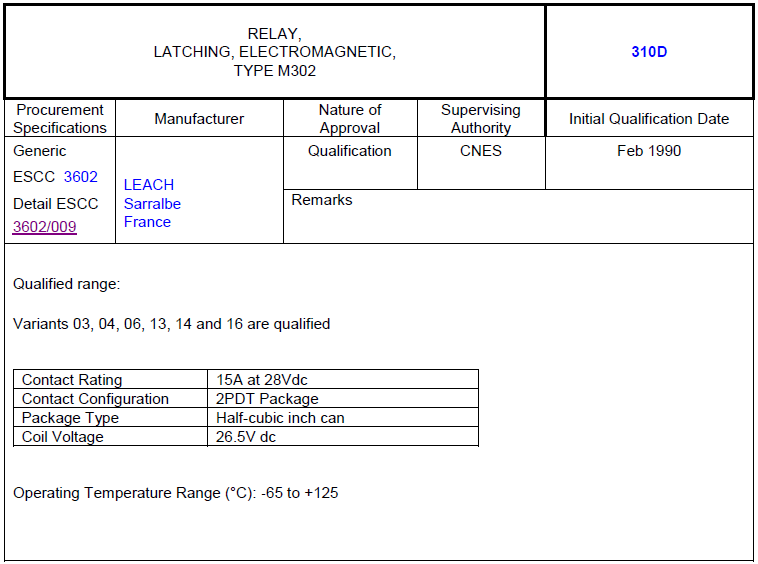

- Certificate 310D from Leach Sarralbe (France).
- Certificate 314D from Vishay S.A. Division Sfernice Nice (France).

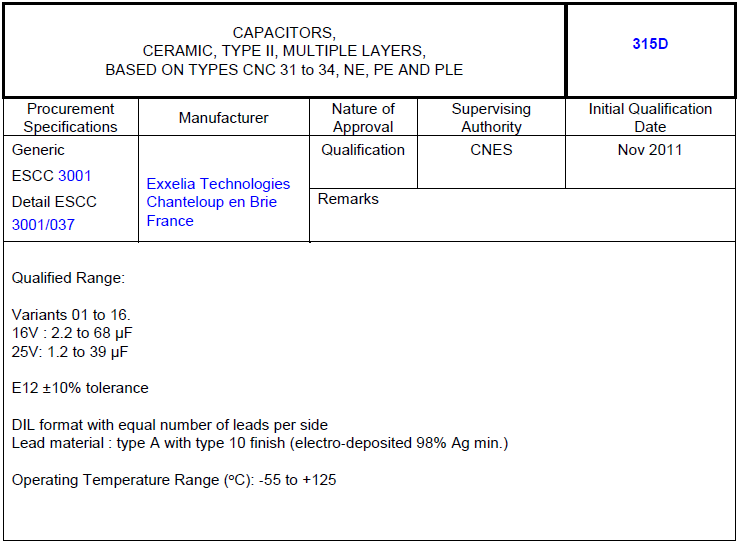

- Certificate 315D from Exxelia Technologies Chanteloup en Brie (France).
About ESCC QPL (Qualified Parts List)
The ESCC Executive publishes a list of components and technologies which have been, respectively, qualified and capability approved to the rules of the ESCC Specification System and the results certified by ESA.
These components and technologies are intended for use in ESA and other European spacecraft and Space segment hardware in accordance with the requirements defined in the ECSS Standard, ECSS-Q-ST-60, Space Product Assurance – Electrical, Electronic and Electromechanical (EEE) Components.
