COTS in space: Does delamination really cause critical failures?

  • Posted by Emilio Cano García
  • On April 20, 2022
  • 0

As we already know, the use of COTS components space has increased in recent years. The new needs of the space market (saving costs, need for modern IC Technology, less lead time, access to the latest technology…) have caused this boom. But the harsh conditions of the space environment (extreme temperatures, radiation, vibration, humidity…) limit the use of COTS and require a balance between reliability, quality, screening, and costs.

COTS components space

One of the biggest cons of COTS space components is the plastic package. Plastic can cause outgassing, coating nearby components in chemicals that cause corrosion. Besides, the non-hermetic sealing can also allow humidity into packages, ultimately leading to corrosion of the semiconductor inside.

Finally, the plastic material can present defects in its internal structure, which must be analyzed and identified to avoid functional anomalies (electrical or mechanical) that could lead to a catastrophic error during the flight.

How to analyze the internal structure of the component?

C-SAM (Scanning Acoustic Microscopy) inspection is a relatively inexpensive and non-destructive method that can accurately detect and identify these anomalies. Some examples are: voids, cracks, delamination, abnormalities, defects, disbands.

In a nutshell, it is a perfect solution for this purpose, but how do these anomalies affect the component?

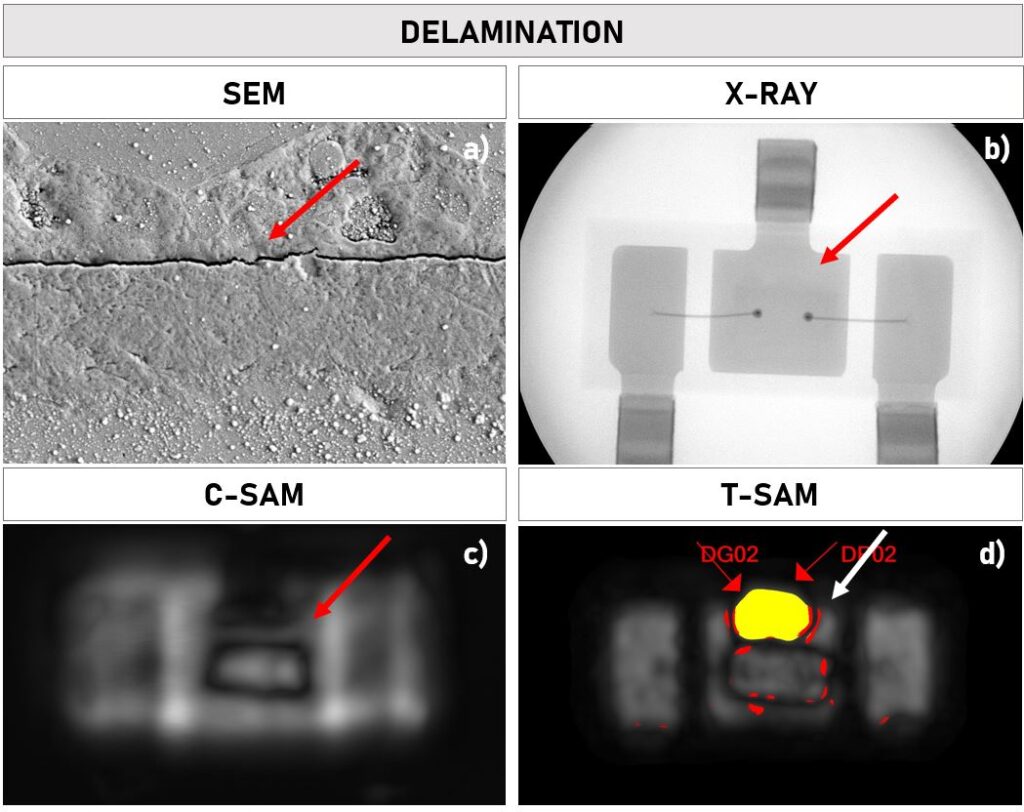

Delamination COTS in Space

Focusing on delaminations (defined as a lack of adhesion at the interface between different materials, typically between the moulding compound and an internal inorganic part), they can cause the following failures:

Failure Mechanisms:

  • Poor mechanical stability
  • Wire bond damages (twisting, neckenning, breakage …)
  • Inefficient heat dissipation
  • Metal corrosion
  • Cracking or delamination of die or encapsulant
  • Popcorn cracking

Electrical Failure Modes:

  • Short-circuit / Open-circuit
  • Parametrical failure
  • Impedance increase

Does delamination always cause electrical or mechanical failures?

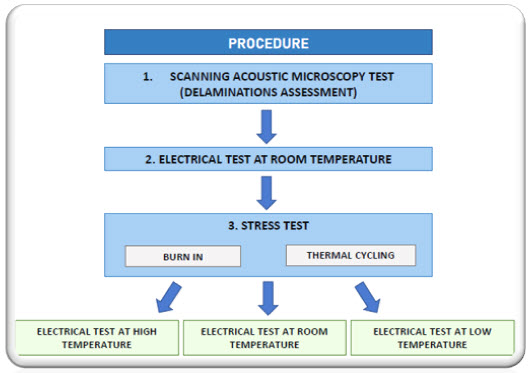

To answer this question, ALTER and the University of Seville have carried out a statistical study, following the procedure in the attached image.

Scanning Acoustic delaminations assesment

The study uses the Shapiro-Wilk statistical model (normal distribution does not fit the observed behavior) and compares the number of outliers* in devices with and without delaminations. Different types of components were analyzed in the study, and they were also subjected to thermal stress (burn-in and thermal cycling).

If you want more information about this study, contact us or watch the webinar

Outliers*

A value of a measured quantity that exhibits a very different behavior from the rest of the measured values of that quantity.

So, what conclusions do we get from this statistical study?

  • A clear tendency to present electrical failure is observed in those components with delaminations.
  • The failure mechanisms associated with the delaminations is influenced by the delamination location and the component technology.
  • The statistical model is able to identify and quantify the number of outliers.

Therefore, we have demonstrated the importance of the C-SAM inspection in COTS, it can be the key to the success of the mission. With this technique we can perform a deep analysis of the component and anticipate possible risks of functional failure in extreme flight conditions.

University of Seville Collaborators:

Juan Antonio Bermudo Molina

Francisco Javier Aparicio Rebollo

Ana María Beltrán Custodio
