A tiny micro supercapacitor (MSC) that is as small as the width of a person’s fingerprint and can be integrated directly with an electronic chip has been developed. This has attracted major attention as a novel technology to lead the era of the Internet of Things (IoT) since it can be driven independently when applied to individual electronic components.
Through the study, Professor Sang-Young Lee and his research team in the School of Energy and Chemical Engineering at UNIST have unveiled a new class of ultrahigh areal number density solid-state MSCs (UHD SS–MSCs) on a chip via electrohydrodynamic (EHD) jet printing. According to the research team, this is the first study to exploit EHD jet printing in the MSCs.
A supercapacitor (SC), also known as an ultracapacitor, can store much more energy than ordinary capacitors. The benefits of supercapacitors include having high power delivery and longer cycle life compared to lithium-based secondary batteries. In particular, it can be produced as small as the width of a person’s fingerprint via a semiconductor manufacturing process, and thus can be also applicable for wearables and internet of things (IoT) devices.
However, because the heat produced in the manufacturing process may cause deterioration of the electrical characteristics of the supercapacitor, it has been difficult to connect them directly to electronic components. In addition, the fabrication method that combines supercapacitors with electronic components via inkjet printing technique has also the disadvantage of lower precision.

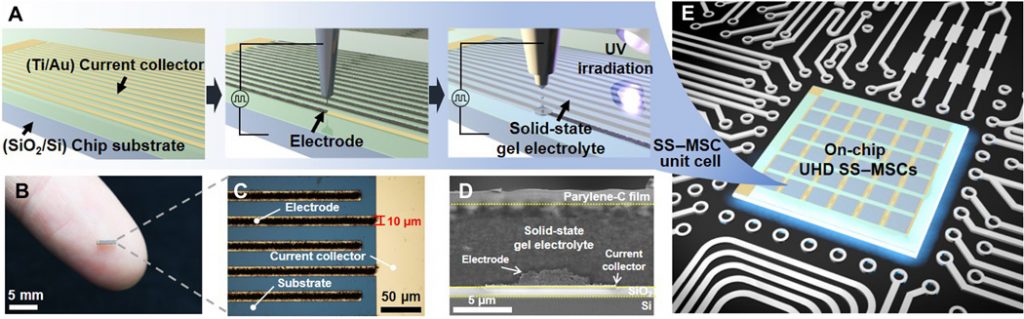

The research team solved this issue using EHD jet printing, a high-resolution patterning technique in microelectronics. EHD jet printing uses the electrode and electrolyte for printing purpose similar to that of conventional inkjet printing, yet it can control printed liquid with an electric field.
“We were able to produce up to 54.9 unit cells per square centimetre via electro-hydrodynamic jet printing technique, and thus the output of 65.9 volts (V) was achieved in the same area,” says Kwonhyung Lee (Combined M.S/Ph.D. of Energy and Chemical Engineering, UNIST), the first author of the study.
The team also succeeded in fabricating 36 unit cells on a chip (area = 8.0 mm × 8.2 mm, 54.9 cells cm−2) and areal operating voltage (65.9 V cm−2) that lie far beyond those of previously reported MSCs fabricated by printing techniques. Besides, upon exposure to hot temperature (80°C), these cells maintained normal cyclic voltammetry (CV) profiles and thus has proven they can withstand excessive heat generated during the operation of an actual electronic component. In addition, these batteries can provide customized power supplies, as they can be connected either in series or parallel.
“In this study, we have demonstrated on-chip UHD SS–MSCs fabricated via EHD jet printing,” says Professor Lee. “The on-chip UHD SS–MSCs presented here hold great promise as a new platform technology for miniaturized monolithic power sources with customized design and tunable electrochemical properties.”
This study has been supported through the Mid-career Researcher Supporting Program by the Ministry of Science and ICT (MSIT, Korea) and the Industry Technology Development Program funded by the Ministry of rade, Industry and Energy (MOTIE, Korea). The findings of this work have been published in the scientific journal, Science Advances on March 6, 2020.
Kwon-Hyung Lee, Seong-Sun Lee, David B. Ahn, et al., “Ultrahigh areal number density solid-state on-chip micro-supercapacitors via Electrohydrodynamic Jet-Printing,” Science Advances, (2020).
