EEE Components, PASSIVES

Ceramic Safety SMD Capacitor Digital Datasheet

  • Posted by Kemet Electronic Corporation
  • On January 29, 2020
  • 0

KEMET’s new CAS series SMD safety certified MLCCs are offered with case sizes of 1808, 1812, 2211 and 2220. Their small footprints reduce required board real estate, allowing designers to deliver more compact designs with higher capacitance.

CAS series capacitors have a 250 VAC rating, support 2.5 kV and 5 kV impulse voltages and are fully compliant with IEC 60384-14 for capacitors that are to be connected to AC mains. They are available with C0G and X7R dielectrics in classes X1/Y2 and X2 with an operating temperature up to 125oC. These devices are available in a capacitance range from 3.0 pF to 22 nF with tolerances from ±0.5 pF to ±20%.

CERAMIC CAPACITORS

Navigate in doEEEt.com and find everything you need for your design

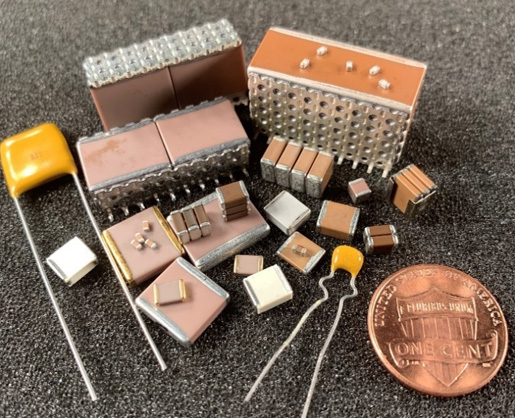

Different-sizes-and-construction-of-MLCC-ceramic-capacitors

Source: Kemet Electronics

  • Author
  • Recent Posts
Kemet Electronic Corporation
Kemet Electronic Corporation
KEMET Electronics Corporation is a leading global supplier of electronic components. Kemet offers the broadest selection of capacitor technologies in the industry, along with an expanding range of electromechanical devices, electromagnetic com​​​patibility solutions and supercapacitors. Kemet vision is to be the preferred suppli​er of electronic component solutions for customers demanding the highest standards of quality, delivery and service.
Kemet Electronic Corporation
Latest posts by Kemet Electronic Corporation (see all)
  • Decoding The DC-Link - June 8, 2022
  • High Reliability: Tantalum Capacitors on the Front Lines of Defense - June 3, 2022
  • One Turn Inductors Explained - March 24, 2022
TAGS: Capacitors Ceramic CLASS X CAPACITOR CLASS Y CAPACITOR MLCC CAPACITORS
