Intel Enpirion PowerSoC modules are DC-DC step-down converters that integrate nearly all the components needed to build a power supply without sacrificing performance or efficiency. These solutions are designed to meet strict FPGA, ASIC, and processor power requirements.

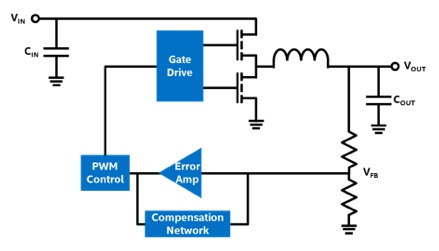

A DC-DC step-down power converter can be designed in several configurations, ranging from discrete to modular architectures depending on the level of integration. As shown in Figure 1, the primary elements of a step-down DC-DC converter include the gate drive circuity, power inductor, output voltage feedback loop, and control circuitry. These components can be integrated at various levels to create different power management devices.

There are many ways that power companies integrate these elements to create different semiconductor devices. These devices can remain completely (100%) discrete, consisting of a standalone controller, standalone power stage, inductor, and passive components. These components can also be fashioned into a regulator, a slightly more integrated device, consisting of an integrated controller and power stage with an external inductor and passive devices.

Both fully and partially discrete power management solutions have some external components. The architectures of both options can be difficult to design in, particularly for non-power experts, as control loop compensation and stability analysis can be challenging. Additionally, the inductor is one of the largest components in the converter, so placing it externally dramatically increases the total solution size. However, one of the benefits of designing with a partially discrete architecture is that they offer a balance of integration and flexibility.

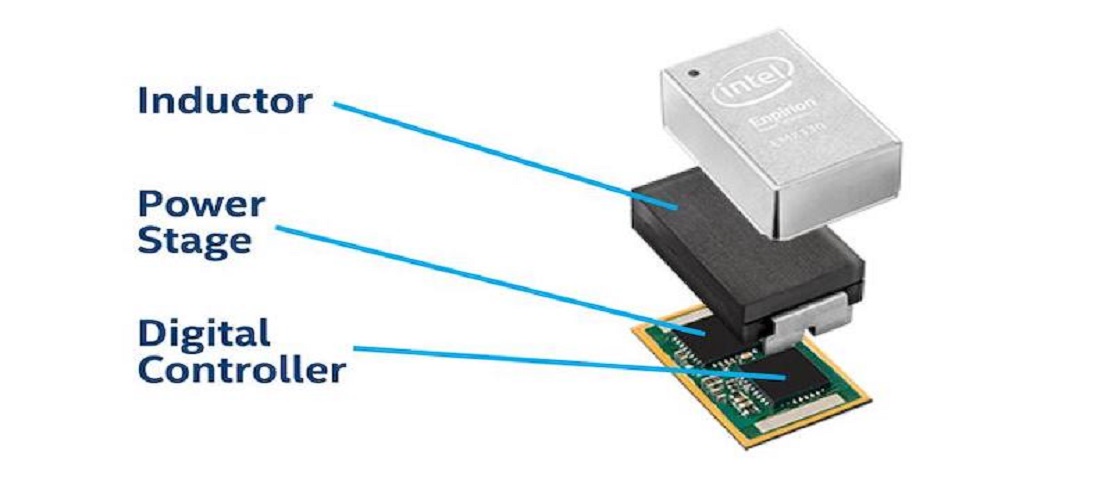

In contrast to fully or partially discrete implementations, Intel offers a completely integrated power module, the PowerSoC. These DC-DC step-down converters integrate the PWM control, gate drive circuitry, MOSFET switches, inductor, and control loop compensation components. Intel PowerSoCs only requires a few external passive components for filtering, and occasionally for control loop compensation. The PowerSoC is the most integrated step-down DC-DC converter semiconductor solution, offering several designs and system advantages.

Intel Enpirion PowerSoCs is a reasonable choice for customers seeking a power module or high-value regulator socket. PowerSoCs are particularly valuable for systems requiring small solution size, power density, ease of use, low risk, low noise, and maximum time to prototyping or production.

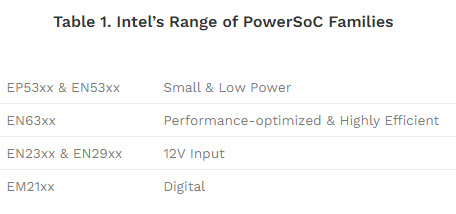

PowerSoCs are Intel’s largest power converter offering, including >50 devices. The Intel range of PowerSoCs includes low power, performance-optimized and highly efficient, 12V Input, and digital families.

**Technical Advantages of Using Enpirion PowerSoCs**

**Thermal Derating**

Thermal de-rating is when a power converter cannot deliver the full rated output current at high temperatures due to silicon and device design limitations without risking damage. For example, if a customer needs to use a device near peak output current and their system needs to operate above ~45°C, they may need to use a larger power supply to reach sufficient current.

In general, Intel Enpirion PowerSoCs do not require thermal de-rating, while most other modules require moderate to extreme thermal de-rating.

**Power Density**

Power Density describes how much power a module can deliver, in the smallest footprint, without thermal issues – combining small solution size and efficiency. Intel Enpirion devices nearly always have superior power density compared to competing converter solutions available.

For example, the Intel EM2130 power density for a 12V to 1V conversion at 30A is as follows:

I_{OUT} = 30A (no thermal derating!) → P_{OUT} = 30A*1V = 30W

Total Solution Size ~18 mm x 20 mm = 360 mm^{2} = 0.56 in^{2}

Total Power Density = >53W/in^{2}!

Because of PowerSoC’s high level of integration, including inductor integration, they require a much smaller PCB (printed circuit board). In contrast, discrete power solutions can take up to 7x more area than an Intel PowerSoC. This small footprint allows system designers to reduce the size of their system PCB and save on cost. Designers may even be able to move to a smaller form factor.

Also, a 16-layer printed circuit board with blind and buried vias, as required by many advanced systems today, costs approximately $15 per square inch (2.3 cents per square millimetre) – so saving even a small amount of space delivers meaningful cost reductions. Designers can also take advantage of the extra PCB space by adding features or additional components to make the end solution more competitive.

**Noise (Ripple and EMI)**

In general, power supply noise can refer to either conducted electrical noise (ripple) or radiated electromagnetic noise (EMI).

Ripple, or conducted electrical noise, is the small, unwanted variation on Vout due to energy transfers during the on/off cycles of any switching converter. Ripple can conduct through the PCB and cause unwanted behaviour, such as jitter or signal traces, which is particularly detrimental for noise-sensitive circuits (e.g. SERDES). Design choices largely generate ripple regarding switching frequency and the parasitic capacitance and inductance. Intel Enpirion PowerSoCs feature high switching frequencies and high integration to minimize parasitic capacitance and inductance, enabling Enpirion devices to have shallow ripple – less than 10 mV for most devices.

EMI, or electromagnetic noise, originates from high rates of current changes (di/dt) flowing in loops, creating a loop antenna. EMI can cause unwanted behaviour such as data or audio interference, or even violate regulatory limits set by the FCC. The radiated power is proportional to the radius of the current loop and decreases by r^8. PowerSoCs have current loops with a much smaller radius, r, than discrete solutions, ensuring the radiated power is significantly lower.

**Reliability (FIT Rate)**

A key measure of system reliability and robustness is the Failures in Time rate, or FIT rate.

One FIT = One failure per billion hours, so lower FIT rates are better.

The FIT rate of a power converter is the sum of all the component FIT rates, which is the sum of the controller FIT rate, power MOSFET fit rates, inductor FIT rate, and FIT rate of all the necessary passive components.

Discrete power solutions, by definition, are numerous components from multiple vendors assembled by a system designer. While the manufacturer tests each semiconductor and passive component, the total reliability of the complete discrete power solution depend entirely on how the system is designed, and what components are selected.

In contrast, Intel PowerSoCs integrate most key components needed in a step-down converter. This essentially complete power supply system, in an integrated circuit package, is validated by the supply manufacturer as a total solution, ensuring that PowerSoCs will have lower FIT rates.

**Review of PowerSoC Advantages**

In conclusion, Intel PowerSoCs offer:

- Turnkey solutions that are designed and validated as a complete power system, requiring little power expertise
- Saved design time and effort, accelerating time to market
- A low-risk solution that prevents time-consuming design error
- Integration into a small total footprint

While PowerSoCs tend to have less design flexibility and can be more costly than fully or partially discrete solutions, it is important to understand the total value of a power module. To do so, designers must understand the total cost they pay for when using a power module versus a discrete power solution. When discussing pricing, consideration of the additional design, testing, and validation time should be evaluated.

Ultimately, the net development cost to design a discrete power supply is often higher than the development cost for designing with a PowerSoC, which should be considered when choosing your power management solution. This means that Intel Enpirion PowerSoCs may be cheaper for customers in low to mid-range volumes, where Intel offers the best balance of performance value and ASP.
