INSPECTION, ELECTRICAL & VERIFICATION, TESTING

Identifying Leakage Pathway with a Penetrant Dye Gross Leak Test

  • Posted by David Ramirez - Cruzado
  • On March 13, 2019
  • 0

Penetrant dye gross leak test is used to identify leakage pathways within hermetic and non-hermetic devices, such as glass body devices or plastic encapsulated parts. The test provides a definitive view of the leak paths including cracks, voids, delaminations and other fractures.

The fluorescent dye penetrant test provides the means to identify failures caused by packaging faults or assembly problems, particularly cracks or voids in the package body with no internal cavities where they can nevertheless lead to deterioration and reliability issues as a result of, for example, exposition to humidity. This method allows detecting such defects being also dedicated to the research of leak origins and mechanisms.

DoEEEt Where Find Your Components In Our Database And Test Them In Alter Technology

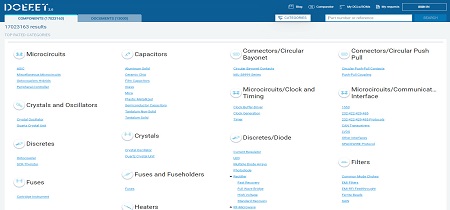

Save time searching the EEE components of your design in doEEEt database

Click here to navigate in doEEEt ⇒

  • doEEEt2.0
  • Search doEEEt

For example, if performed in accordance with MIL-STD-750 method 1071, this test allows detecting the presence of leaks or cracks in glass diodes. The method consists in dipping the samples into a fluorescent dye solution (rhodamine) while being placed in a hermetic chamber and pressurized in order to force the liquid to penetrate the possible cracks, voids or gaps between the glass diode body and the leads. After the cleaning process, the tested samples are examined under high magnification using a UV light source for evidence of rhodamine. Before the inspection, the device can be encapsulated in a transparent resin for cross-sectioning.

This test is performed onto transparent glass encapsulated devices or for destructive verification of opaque devices. Any evidence of dye in the device constitutes a failure and the device is rejected.

  • Author
  • Recent Posts
David Ramirez - Cruzado
David Ramirez - Cruzado
Analysis Inspector at Alter Technology
David works as an analysis inspector in the area of Incoming Inspection, Destructive Physical Analysis & Failure Analysis in Alter Technology laboratories.
David Ramirez - Cruzado
Latest posts by David Ramirez - Cruzado (see all)
  • Internal Visual Inspection of Hi-Rel EEE Parts - November 6, 2020
  • What is an External Visual Inspection? - May 21, 2020
  • Identifying Leakage Pathway with a Penetrant Dye Gross Leak Test - March 13, 2019
TAGS: DPA EEE PARTS FINE LEAK EEE PARTS GROSS LEAK EEE PARTS SEAL TEST EVALUATION QUALIFICATION Testing Method
