An electrothermal event refers to abnormal temperature increase leading to malfunction or catastrophic fails.
The high temperature reached during such event activates or initiates some of the failure mechanism explained before, such as the growth of insulation oxide layers and outgassing processes responsible for organic contamination. Besides the formation of nonconductive layers at the contact interface, high temperature can also cause the degradation of plastic insulators and contribute to multiple short circuit conditions.
Electrothermal events can be related to:
- Sustained overload conditions leading to high operating temperatures for long periods of time.
- Arcing due to the loss of connection at the contact interface during mechanical vibration.
- Transient short circuit conditions resulting in localized hot spots.
[qcld-ichart label=”Circular Push/Pull,Printed Circuit Board,Rectangular Sub-D type,RF Coaxial” value=”2047,3939,6842,1163″ type=”polarArea” title=”Connectors” datasetname=”TOP CATEGORIES” width=”95%” backgroundcolor=”” bgcolor=”‘#8224e3′,’#1e73be’,’#81d742′,’#ff543a'” bordercolor=”” pointerstyle=”circle” linestyle=””]
It also worth to mention here the interplay between electrothermal events and corrosion in constant-current biased systems. In those systems corrosion product at the contact, interface increase the system resistance and therefore the dissipated power, which in turn accelerates the corrosion rate (electrothermal feedback).

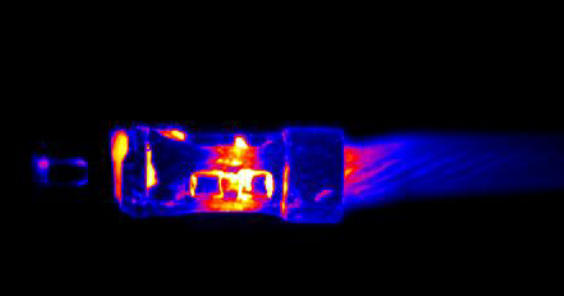

Prolonged operation under high temperatures leads to connector discoloration noticeable by visual inspection. Early hot spot detection is conducted by IR thermography which has been proved to be a useful tool to prevent temperature driven failures in crimped systems as well as to assess the crimping quality.6 In addition, these techniques are used to study transient electrothermal events.
