ABC of CLR, EEE Components, PASSIVES

Comparison Charts of Film & Foil Organic Capacitors

  • Posted by Tomáš Zedníček
  • On April 30, 2019
  • 0

COMPARISON CHARTS, ORGANIC DIELECTRICS

This page summarizes basic overview of film and foil organic dielectric capacitors.

The various dielectric types were described in more details on previous pages:

  • POLYESTER (PET) / KT / MKT and POLYETHYLENE NAPHTALATE (PEN) Organic Dielectric Capacitors
  • POLYPROPYLENE (PP) / KP / MKP and POLYCARBONATE (PC) / KC / MKC Organic Dielectric Capacitors
  • POLYSTYRENE (PS), POLYPHENYLENE SULFIDE (PPS), TEFLON (PTFE) and POLYSULFONE (PSU) Organic Dielectric Capacitors

More data on organic dielectric materials can be also found in the following article and its references:

All The Standars And Documentation Related To The Mounting, You Will Find In DoEEEt

Check doEEEt, just clicking here ⇒

Organic Dielectric Comparison Charts

comparison charts

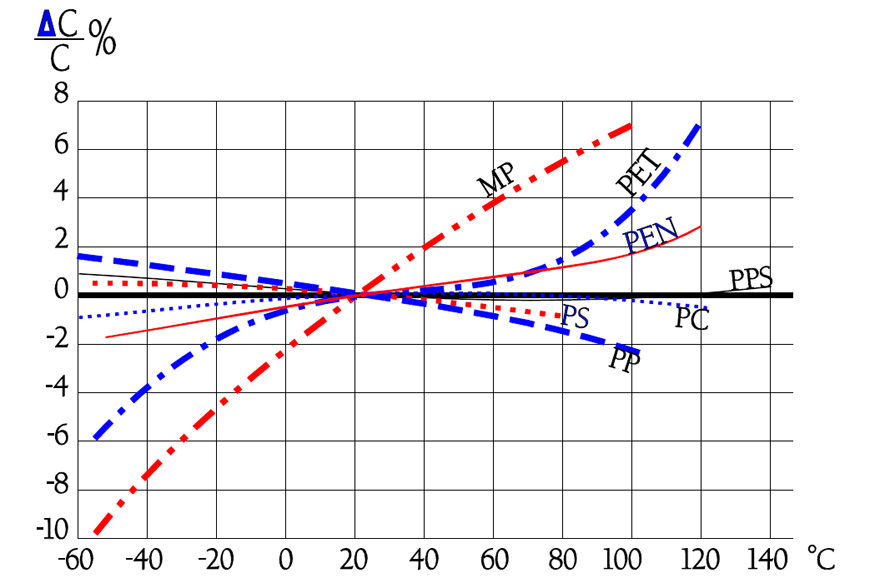

Figure 1: Comparison of the temperature dependence of capacitance for organic dielectrics in foil or metalized design. Typical curves.



comparison charts

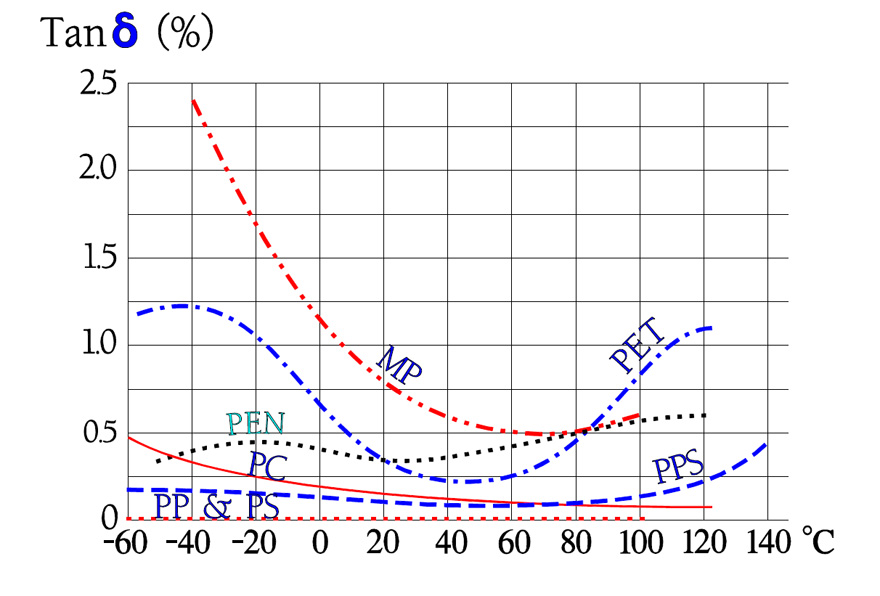

Figure 2: Comparison of Tanδ versus temperature for different organic materials.



comparison charts

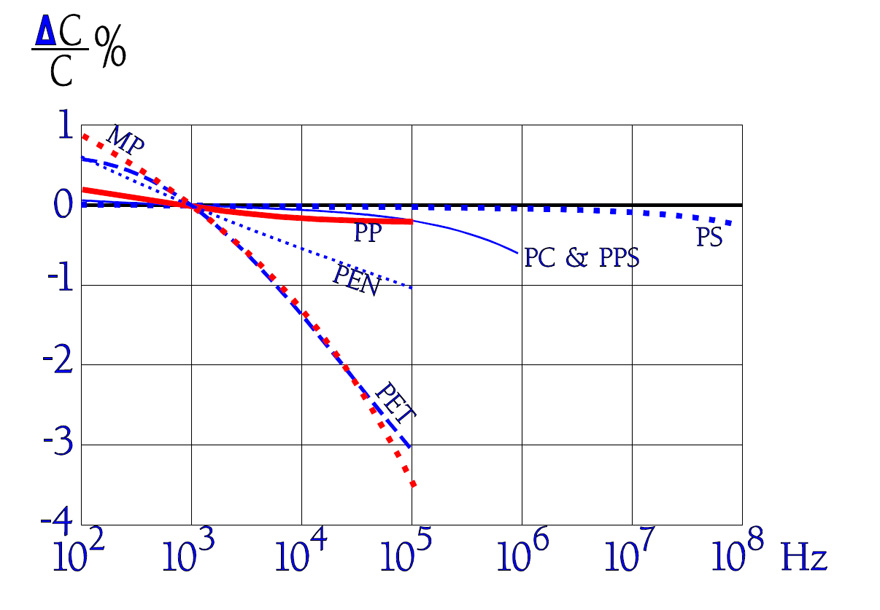

Figure 3: Comparison charts of the frequency dependence of the capacitance for organic dielectrics. Typical curves.
