BGA device assembled to a PCB has been submitted to the ECSS verification programme following the guideline defined in the ECSS standard ECSS-Q-ST-70-38C. Metallographic analysis allows us to check the status of such devices after performing the environmental tests (Vibration & Thermal Cycling).

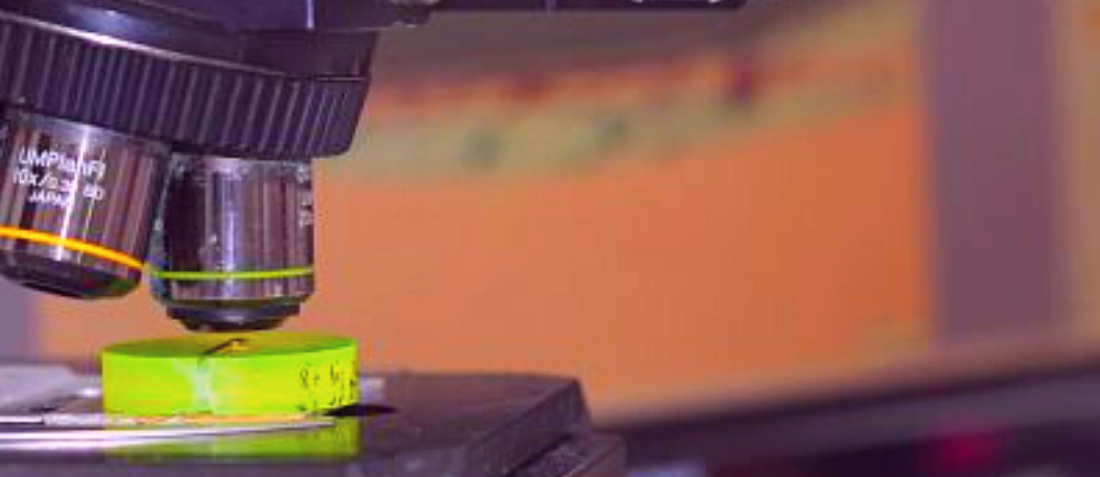

Cross-section analysis is a very useful way of determining the construction and material composition of electronic devices. The FP device is potted in epoxy resin. After curing, the sample is sequentially grinded up to reach the plane of interest. Then, the specimen is subjected to several polishing steps to achieve a high-quality surface to be analyzed by metallographic microscopy.
Microsection analysis is performed on an assembled through hole device as a part of a failure analysis. Cross-section through the plane of interest can provide helpfully information about solder defects, PCB inner layers and internal construction. As a part of a failure analysis, the plane of interest has to be selected taking into account PCB characteristic, observed failure and previous test results.
The separation of the interest area has to be performed in such a way as to prevent any damage by deformation or input of heat. After cleaning, the specimen is encapsulated before the grinding process takes place.
The reliability of the components used in a spacecraft is a determinating factor for their operation and performance throughout the mission life. Only the most advanced techniques are able to provide the depth and accuracy in the inspections required by current state of the art microelectronics.
Assembly process of THT or SMT onto PCBs for spacecraft applications follow well-established design requirements based on specifications prepared by ECSS (ECSS-Q-ST-70-08C & ECSS-Q-ST-70-38C), NASA and IPC (IPC-6012).
Resistors assembled to a PCB have been submitted to the ECSS verification program. Metallographic analysis allows us to check the status of such devices after performing the environmental tests (Vibration & Thermal Cycling).
Supercapacitors also called electrochemical double layer capacitors are energy storage devices storing a high volume of electric energy in the double layer between a high surface area electrode and an electrolyte. As compared to batteries no chemical reactions should occur at the electrodes.
