Vibration Testing

for Electronic Components

ALTER TECHNOLOGY is a highly qualified laboratory to perform VIBRATION TESTING.
doEEEt helps you to define in which step of the Evaluation, Screening or Qualification flows has to be included the VIBRATION TESTING, even having access to the proper TEST MEHOD:

  • MIL-STD-883 Methods 2002, 2005, 2006, 2007, 2026.
  • MIL-STD-750 Methods 2016, 2046, 2051, 2056, 2057.
  • MIL-STD-202 Methods 201, 204, 213, 214.

Vibration Testing is performed to validate the reliability, performance and structural integrity of a device during its transportation and useful life, avoiding life failure in space. Vibration Testing mimics the conditions such as the one during a rocket launch. Some devices have mechanical parts that may be sensitive to testing and therefore to have a malfunction in its final application.

Vibration Testing is a very specialized field where Alter Technology is a highly qualified laboratory. With a Vibration Test, you can comply with customer qualification requirements, improve your product reliability, estimate life expectancy and perform package testing. The reliability of your design will be guaranteed filtering the most appropriate component quality level.

Standards we test to:

  • EN-60068-2-6:2008
  • EN-60068-2-27:2011
  • EN-60068-2-64:2008
  • MIL-STD-810
  • RTCA-DO-160
  • MIL-STD-883 Methods 2002, 2005, 2006, 2007, 2026.
  • MIL-STD-750 Methods 2016, 2046, 2051, 2056, 2057.
  • MIL-STD-202 Methods 201, 204, 213, 214.
  • ESCC 3401 Para 9.11.2, Para 9.11.3.
  • ESCC Q-ST-70-38 & ECSS-Q-ST-70-08C

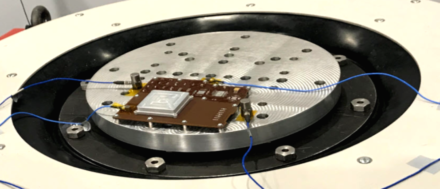

Vibration Testing

The team of engineers working in our vibration laboratory has experience in:

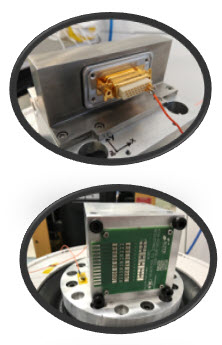

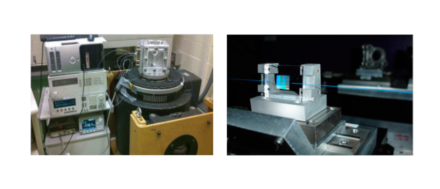

  • Design and analysis of the necessary tools for the fixation of components to the shaker platform to ensure that the tool does not introduce disturbances to the test due to its resonance frequencies.

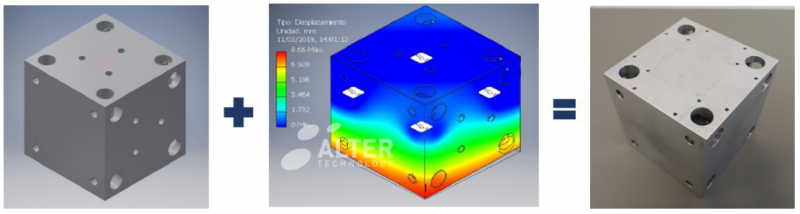

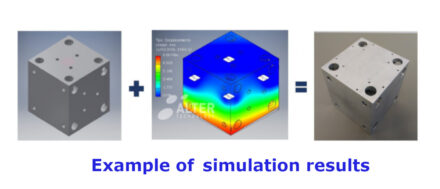

Example-of-simulation-results

ALTER TECHNOLOGY LABORATORY SERVICES

Read more about Vibration Testing in EEE Parts

HYPERBOLOID CONTACTS

IEH Corporation
0

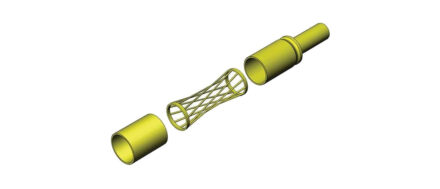

HYPERBOLOID CONTACTS
