Alter Technology UK, has the ability to Gold (Au) stud bump wafers and individual die making them ready for a subsequent flip chip attach process

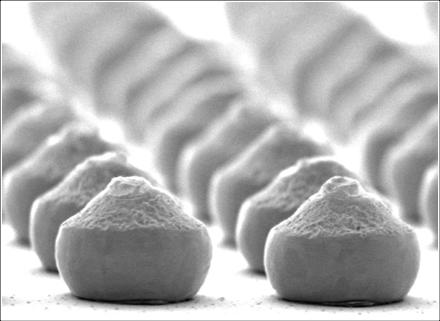

Gold stud bumping forms Au bumps using a process similar to Au ball wire bonding. Like wire bonding, it forms an Au ball (stud). However, the wire is terminated after the first bond so there is only a bump on the die.
Au stud bumping requires no Under Bump Metalization (UBM) or special wafer preparation, unlike the requirements for solder bumping. It also offers finer bump spacing than most solder bump technology without the added expense of a solder re-distribution layer.
Au stud bumps can be used on individual die or wafers and typically have much lower set-up costs than a solder bump approach. The ability to bump individual die makes Au stud bumping an extremely valuable tool in the prototyping phase and a viable option for volume manufacturing.
For many sensitive devices such as lasers, MEMS, and sensors, the use of flux or adhesives is not allowed, and a thermosonic or thermocompression Au-Au attach process offers a reliable flux-free process to improve the device reliability.
Depending on the application, Au stud bumps can be produced in various diameters and shapes. For example, Stud bumps with diameters of 40-100um can be produced with heights of 20-80um. Co-planarity of +/-2.5um can be achieved without the coining process. Stacked bumps can increase the stand-off distance between the die and substrate to help accommodate substrate thickness variations and minimize CTE differentials. Gold stud bumps with pointed tips can be used for subsequent epoxy dipping.
Alter Technology UK’s expertise and capability in Gold Stud bumping will reduce risk and time to market for your Gold stud bumping requirements and provide a cost-effective manufacturing option.
