Analysis of Inspection and DPA Test Requirements applied to Flip Chip Technologies.
Background and motivations.
Flip chip assembly techniques bring a wide range of benefits:
- A reduced parasitic interconnection between the semiconductor die and package.
- Provides a high final assembly integrity density.
- Minimize the interconnection length, providing better electrical performances, especially for high-speed signals.
- Reduce device size and weight,…, etc.
Study approach / Tasks.
Task 1 – Investigate Requirements.
Task 2 – Research Solutions.
Task 3 – Analysis of Solutions.
Task 4 – Demonstrations.
Flip Chip Technologies, Reliability and Failure Modes
|wdt_ID||Process||Failure Mode||Failure Mechanism|
Flip Chip Technologies, Requirements investigations
- MIL-STD-883 J , MIL-STD-1580B
- MIL-PRF-38535 K, EPS on Flip-Chip underfill test requirements
- IPC-7094 on Design and assembly process implementation for Flip-chip, MIL-STD-1580 B,
- IPC-TM-650 Test Method Manual
- 20400 , 20500, 20900
- 21400, 25300, 25500
- J-STD-029. “Test Methods for Flip Chip or Chip Scale Products”.
- J-STD-030. “Guideline for Selection and Application of Underfill Material for Flip Chip and Other Micropackages”, …
- JEP 154 ,170,…
- AEC – Q100-010. “Attach. 10 Rev. A. Solder Ball Shear”.
- IEC-PAS 62084. “Implementation of Flip Chip and Chip Scale”.
- Direct consultation to companies involved on Flip-chip: service providers, researcg intitutions and test equipment suppliers…

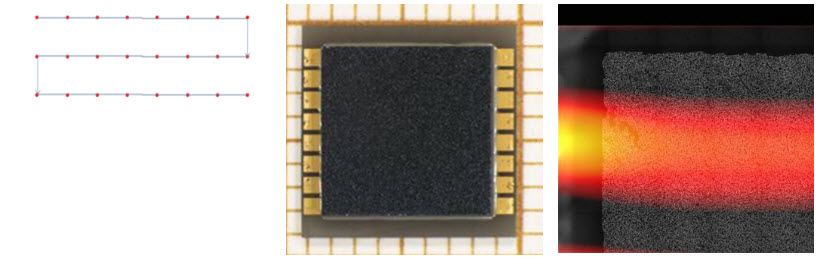

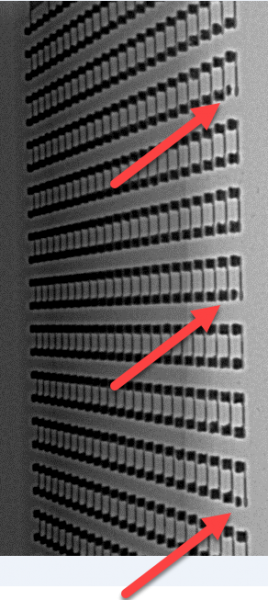

Demonstration test flow and performance
A sample with an open circuit in a pre-defined daisy chain was selected (the other daisy chains have good electrical continuity). In order to proceed with the magnetic inspection the heatsink was removed, exposing the substrate pads and the device was biased and inspected with a magnetic microprobe. (Each device has had 8 daisy chain tracks, track 1 at the top of the test part, and 8 at the bottom. The bump array has 24X24 bumps, so each daisy chain corresponds with three bumps lines).
The technique is promising but, it seems very dependant on the kind of available materials in the sample, and the distance, being in our case difficult to obtain useful information.
*The activity could be performed thanks to Fulvio Infante / Nicolas Courjault INTRASPEC TECHNOLOGY
Alter Technology UK built 37 samples as Test Vehicles inducing key flip-chip failures modes to assess if the selected test flow was able to properly detect the problems.
Check the full paper with all the Optocap Assembly design and manufacturing, the test vehicle and test sample assignment, DPA flow for Flip`-chip construction, some DPA pictures, and the Summary and some of the conclusions after these studies.
