COTS and Lead Free – Dealing with the Quandary

  • Posted by Liam Murphy
  • On December 3, 2019
  • 0

europeIntroduction – REACH 1/3

Main purpose is to

ensure a high level of protection of human health and the environment

in relation to the use of chemical substances.









Introduction – REACH 2/3

Registration, Evaluation, Authorisation and Restriction of Chemicals
• Addresses potential impacts of chemicals to human health and on the environment
• And production & use of chemical substances.

Strictest law to date regulating chemical substances.
• many chemical substances will face regulatory or commercial obsolescence, causing widespread impacts to downstream users.

Very desirable and ambitious regulation to contribute to a safer and healthier environment but causes wide-reaching engineering and management challenges for the space sector which is by nature driven by performance and heritage design.

Introduction – REACH 3/3

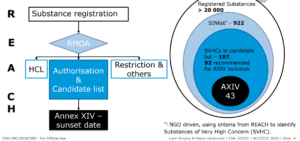

reach

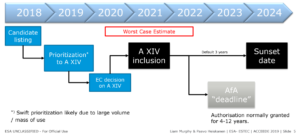

Example timeline of REACH authorisation (Pb)

example



Joint Working Group for Pb-free transition

During 2019, ESCC CTB and MPTB have formed a joint working group that has the following goal:

  • In the domain of EEE components, electronic assembly technologies and PCBs, ensure a successful industry-wide transition to a Pb-free technology while preserving or improving current level of quality and reliability, including but not limited to:
    • Tin-whisker mitigation and risk assessment
    • Lead-free solders and assembly processes
    • Accelerated tests for verification of Pb- free materials and processes and qualification of components, and
    • Acceptance criteria for Pb-free materials, processes and components
  • Objectives: Identify the necessary activities and objectives, with
    • measurable outcomes indicating successful completion (e.g. TRL),
    • including schedules and budgets,
    • and their interconnections and dependencies.
  • To form a lead-free transition plan composing of:
    • Materials and EEE parts selection
    • Supplier compliance and guidelines for procurement
    • Changes in assembly processes
    • Reliability assessment and key reliability risks in lead-free electronics

So…..Why are there Concerns?

New materials and processes replacing known and trusted technologies.

So…..What are the Questions?

  • Examples:
  • Metals:
    • Tin Pest & Tin Whisker
    • Oxidation and Dendritic growth
    • Dendrite growth, metallic migration etc.
  • Corrosion, Intermetallics, Oxidation, Delamination etc.



An Example

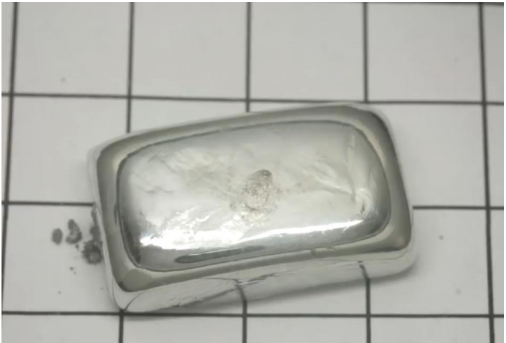

Tin Pest



pest

Tin Pest is a self initiating autocatalytic, allotropic transformation of tin, which causes deterioration of tin objects at low temperatures (starting around -13).

Another issue

Tin Whiskers

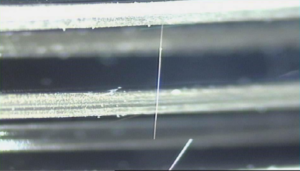

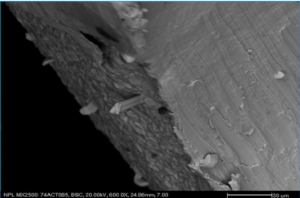

Tin Whisker

Tin Whisker

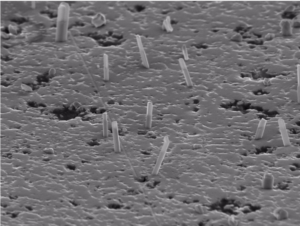

Whisker Spontaneous growth

Whisker Spontaneous growth

So ?

So what if we get whiskers?
They will just blow out like a fuse!
Not necessarily!
In Vacuum things change.
Hi energy / Large currents Will explode / vaporize a fine short circuit
Low energy / small current?
Will not necessarily cause a failure –
the short circuit element could just get hot!

Simple filament

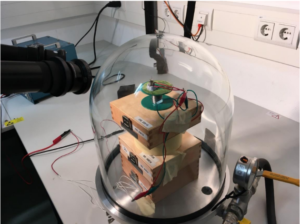

Set up

set up



+ Vacuum

vacuum

And rememeber:

dendriteDendrite Growth risks

  • Dendrite growth is the flow of Ions in a conductor, due to potential difference between 2 conductors.
  • Described as an Ionic migration, it occurs below 100 Degrees C in moisture conditions.
  • Materials affected include Silver, Nickel, Palladium etc. In fact any anodoically soluble metal (requiring low initiating activation energy)
  • Known to grow on substrate surfaces, component surfaces, in cracks in capacitors and even Nickle dendrites in cracked glass feed through beads







anode-cathode

What are the Questions ?

So what about Dendrites?
Not known to occur in vacuum (flight) – only atmosphere.
Need bias and humidity (liquid or partial liquid)
Once formed they create a high impedance short.

The longer the power is on (and kept wet) the worse it gets!

They will not easily fuse!



Conclusions

From the packaging perspective:

  • COTS packaging and lead free assembly bring a whole variety of new potential issues to the established market place.
  • New packaging and assembly
  • Very little heritage and history for flight applications
  • Very little data available to the Agency on space level testing performed
  • Upcoming packaging materials restrictions (RoHs, REACH)
