Plastic Encapsulated Microcircuits (PEMs) offer key advantages—lower cost, reduced size, and increased functionality—but pose reliability risks due to lack of hermeticity and material mismatches that can lead to delamination, cracks, and voids. Scanning Acoustic Microscopy (SAM) is the most effective non-destructive method for detecting such internal defects, yet its application is often limited by complex interpretation and inconsistent criteria across standards. In response, ALTER has developed a well-defined internal procedure based on decades of data, industry surveys, and comparative method analysis to ensure accurate assessment and decision-making in SAM inspections.
Plastic encapsulated COTS
Plastic Encapsulated offers:
- Lower procurement cost.
- Shorter procurement time.
- More performance and functionality available.
- Reduced size and weight.
An inherent risk of PEMs is related to:
- Lack of hermeticity.
- The mismatch with the thermomechanical properties of the inorganic internal part.
Definitions
Delamination: Lack of adhesion at the interface between different materials; typically between the molding compound and an internal inorganic part.
Crack: Fracture in the bulk or on the surface of a given material, either the molding compound or internal inorganic parts (for instance the die surface).
Void: Lack of material within the bulk for instance within the die attach or in the molding compound due to improper injection
Lack of hermeticity
Contamination and moisture ingress and accumulation build-up result in metal corrosion. Occasionally, when the temperature rises, additional cracking occurs due to an effect known as popcorn cracking.
The actions that cause such contamination and accumulation of moisture are:
- Delamination on a surface breaking part
- Delamination on the die/paddle surface
- Cracks/void from the external surface to an internal feature
CTE Mismatch
Shear-induced damage of the die passivation produces metallic smearing (metallic tracks) and are caused by delamination on the die surface.
Bond wire degradation due to shear is connected by Cracks/void intersecting a bond wire.
Poor thermal dissipation is occasioned for Lack of adhesion or voids in the die attach.
Why Scanning Acoustic Microscopy (SAM)?

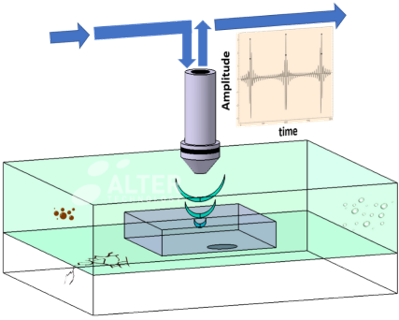

- The ultrasound waves are extremely sensitive to density changes, so it is easy to detect any substantial change no matter how small.
- The best non-destructive approach for detection of air flaws in low-density materials

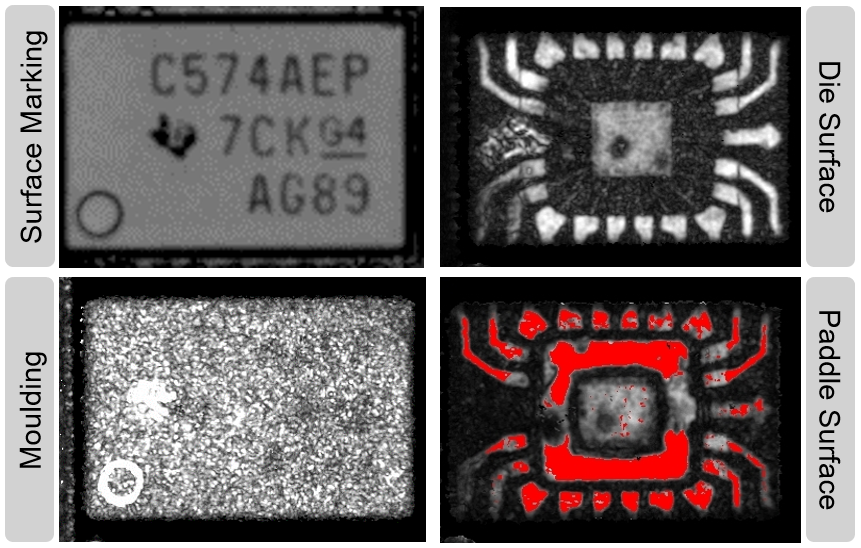

- With a sequential confocal inspection

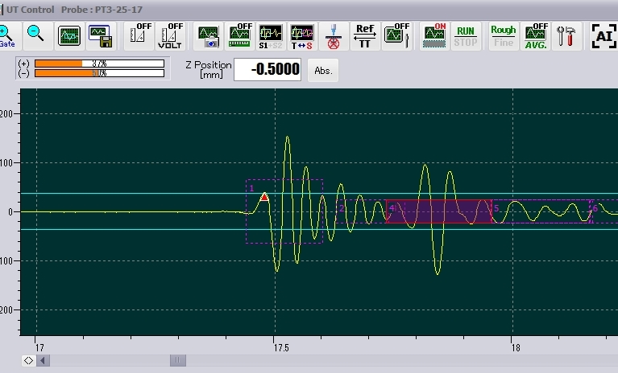

Detailed phase inversion analyses provide additional delamination contrast
Test methods
ESCC 25200 Application of Scanning Acoustic Microscopy to Plastic Encapsulated Devices

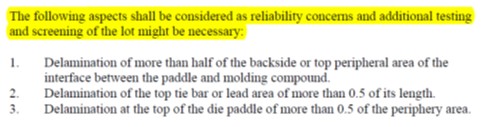

PEM-INST-001 Instructions for Plastic Encapsulated Microcircuit (PEM) Selection, Screening, and Qualification
J-STD-020E Moisture/Reflow Sensitivity Classification for Nonhermetic Surface Mount Devices
MIL-STD-883 Test Method 2030 Ultrasonic Inspection of Die Attach.
MIL-STD-1580 Paragraph 16.5.1.3 Acoustic Microscopy
Although powerful, SAM is a complex inspection technique AND
- The different used specifications apply dissimilar rejection criteria
- Due to the high sensitivity to air flaws, on occasions, the impact of the observed deviations has to be assessed by additional test/s
- Verification procedures are not well specified in all cases
In this context, ALTER has made an effort to clarify this scene and state a well-defined internal procedure to address SAM findings:
- Historical review of our internal data accumulated for 30 years with different manufacturers and packages
- Survey to manufacturers and users about the most extended SAM test methods and verification procedures
- Detailed comparative analysis of the different SAM inspection methods
- Development of an internal decision-making flow by considering all the involved factors
