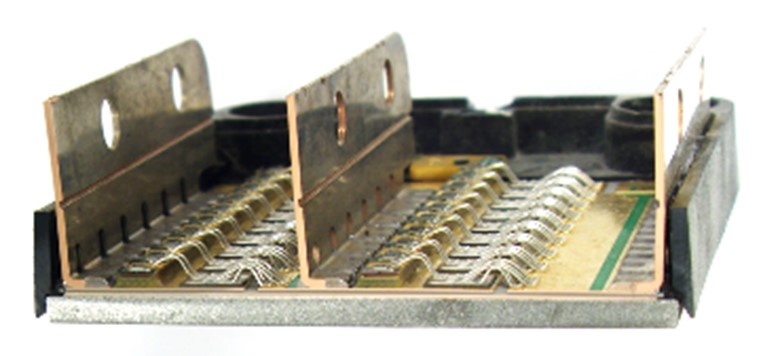

Automotive SiC modules play a crucial role in inverters, which are a critical component of the electric vehicle (EV) drivetrain. These inverters convert direct current (DC) supplied by the onboard battery into three separate AC phases for the vehicle’s traction motor, then back into DC for regenerative braking, and finally regulate motor speed when the accelerator is pressed. Without automotive SiC modules, EV inverters would lack the efficiency and performance needed for optimal functionality.
The current generation of inverters is running under 400V; for a couple of years, the new generation targeting luxury cars has been running under 800V. This new generation will most likely be deployed in the future of all cars. Technologically for 400V main inverter, silicon technology such as IGBT or IGBT modules are preferred for higher currents in typical inverter applications; Silicon MOSFETs are also capable of handling medium power levels and overlap in functionality somewhat. With the introduction of the 800V, the need for wide band Gap technologies such as the Silicon Carbide (SiC)-based substrates are fairly new and hold even more promise with power density at higher switching frequencies and with better thermal characteristics.

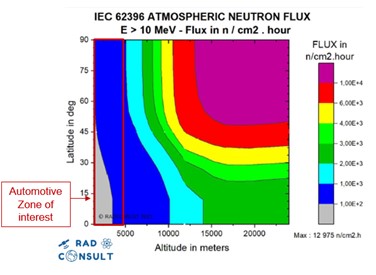

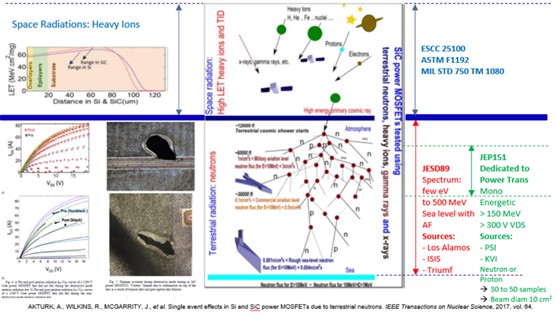

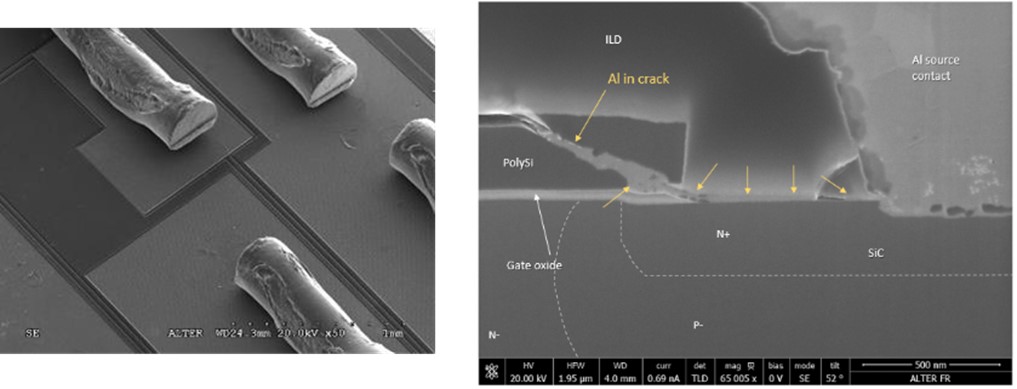

We, in alter France, are performing both construction analysis and terrestrial neutron radiation testing on inverter module using SiC transistor as the automotive end customers require to qualify the cars and it’s associated electronic up to 4 000 meters.
